Lithium Counterbalance Series · 1.5 – 2.0 t
A complete lithium-ion counterbalance line in three capacities — 1.5 t, 1.8 t and 2.0 t. Imported-brand AC drive with self-diagnostic fault codes, wide-view mast, LED lighting and a 3.5-inch color display as standard. One platform, low maintenance, fast charging.
KBE(S)15/18/20-Li-01 · 1.5 / 1.8 / 2.0 tHighlights

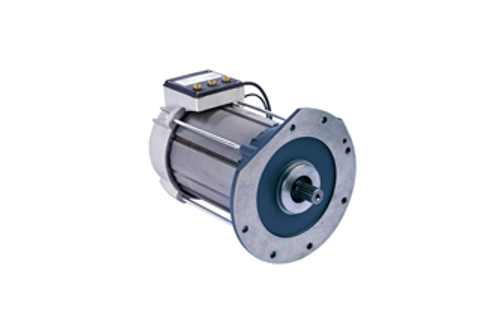

Imported-brand maintenance-free AC motor with fault-code diagnostics — less maintenance, higher efficiency.

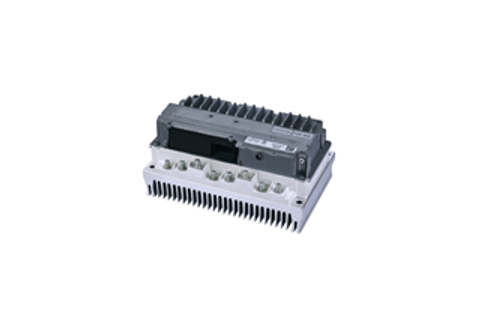

Imported-brand controller matched to the traction and AC lift motors for stronger power, better handling and stability.

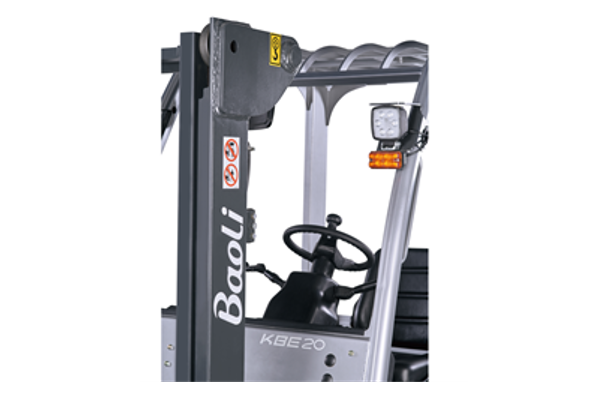

Standard LED headlight improves visibility and safety during night shifts.

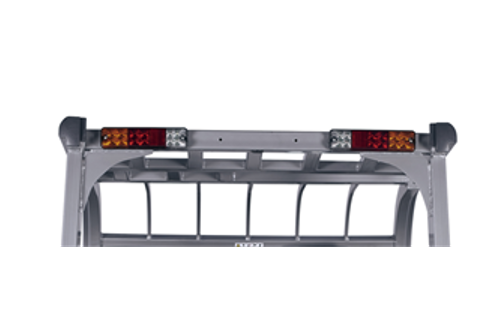

Standard LED tail light — clear, simple and low-power.
A fresh exterior designed by a professional industrial design team.

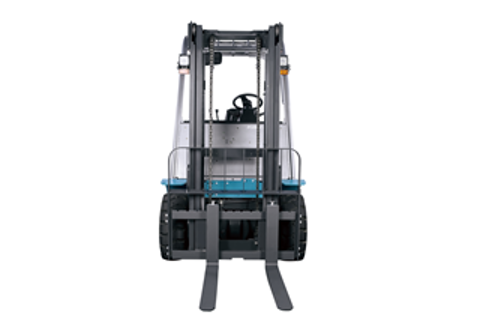

Wide-view mast design gives the operator an open field of vision — safe and efficient.

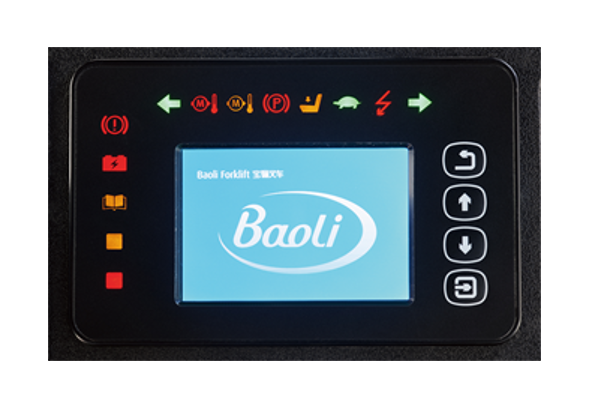

A 3.5-inch color instrument cluster for clear, easy machine interaction.

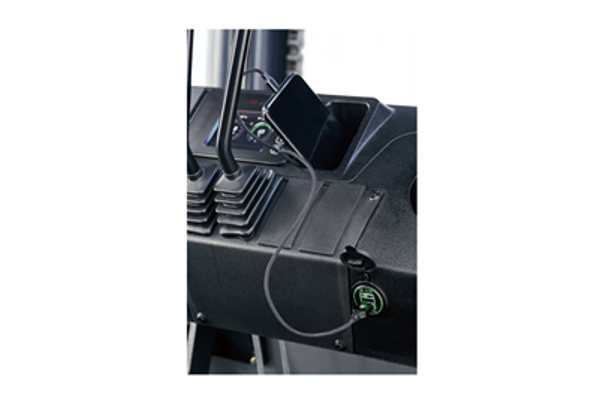

Standard USB port to charge phones and devices during the shift.
See It Work
Request the latest working footage of the KBE(S)15/18/20-Li-01 series — lifting, stacking and dock work.
Maintenance-free AC motor and controller with fault-code diagnostics keep downtime and service costs low.
The operator keeps the forks in sight at all times — faster cycles, safer loading and unloading.
Lithium-ion battery with fast charging, no acid, no daily watering, no battery room.
Technical Data
| Item | Specification |
|---|---|
| Model range | KBE(S)15 / KBE(S)18 / KBE(S)20-Li-01 |
| Rated capacity | 1500 / 1800 / 2000 kg (load center 500 mm) |
| Power type | Lithium-ion battery electric |
| Drive motor | Imported-brand AC, maintenance-free |
| Controller | Imported-brand AC with fault-code diagnostics |
| Lift motor | AC lift motor |
| Mast | Wide-view mast, 2-stage standard (3-stage optional) |
| Standard lift height | 3000 mm (optional up to 6000 mm) |
| Lighting | LED headlight + LED tail light (standard) |
| Instrument | 3.5-inch color display with fault-code readout |
| Charging port | USB port (standard) |
| Charging | Fast charging, opportunity charging supported |
| Tires | Pneumatic / solid optional |
| Brake | Regenerative + hydraulic service brake |
| Certificates | CE (EU export models), ISO 9001 factory |
| Warranty | 2 years machine / 5 years battery core |
Optional Accessories
Build Quality
Imported-brand AC motor and controller with self-diagnostic fault codes. No brushes, no daily maintenance, fault codes readable on the display.
Mast design with an open view across the forks — safer stacking and faster cycle times.
LED headlight and tail light fitted as standard for night and low-light operations.
3.5-inch color display, USB charging port and ergonomic controls designed for full-shift comfort.
Logistics
Masts lowered and forks packed separately for container shipping. Loading photos sent before shipment.
TCO Calculator
Adjust the numbers for your local energy prices and duty cycle.
Estimated for a 1.5 t lithium forklift, 8h shift, typical duty.
FAQ
